If your truck or bus was built in the last few years, it almost certainly has a camera sitting behind the windscreen and a radar unit tucked into the bumper or grille. ADAS calibration is the process of telling those sensors precisely where they are pointing, relative to the direction the vehicle actually travels. It has quietly become a routine part of heavy vehicle repair rather than a specialist add-on.
The problem is that a truck with badly aimed sensors drives completely normally. There is no warning light, no obvious symptom, nothing a driver would report. The fault only shows up in the one moment the system was fitted to handle.
Australian Design Rules now make advanced emergency braking and lane departure warning mandatory equipment on new heavy vehicles, which changes what a finished repair actually looks like. This guide covers what the process involves, which jobs trigger it, and where your obligations sit once the vehicle leaves the workshop.
ADAS stands for advanced driver assistance systems: the group of technologies that includes autonomous emergency braking, lane departure warning, adaptive cruise control and blind spot monitoring. On a heavy vehicle these typically run off a forward-facing camera mounted to the windscreen, a long-range radar in the front bumper or grille, and in some configurations additional side-mounted radar units.
Every one of those sensors works in angles. The camera interprets lane markings based on an assumed mounting height and pitch. The radar measures the closing speed of objects within a narrow cone it believes is aimed dead ahead. Calibration is the procedure that establishes those reference points, confirming to the system where level and straight ahead genuinely are on this particular vehicle.
It is not a software reset or a code clear. Proper calibration combines physical aiming of the sensor with electronic reference values written to the module, then verified. The reason precision matters so much on heavy vehicles is simple geometry: a radar misaimed by a single degree is pointing close to two metres off line at 100 metres. At highway speeds and highway following distances, that is the difference between tracking the vehicle ahead and tracking the guardrail beside it.
Heavy vehicle safety technology has moved from optional to mandated over the past three years, and the timeline matters because it determines which vehicles in your fleet carry certified systems.
The safety case behind these rules is substantial. Government impact analysis found that although heavy vehicles make up around four per cent of registered vehicles in Australia and just under nine per cent of kilometres travelled, they are involved in almost 16 per cent of all fatal crashes, with lane departure incidents alone costing the community roughly $63 million a year.
The practical consequence for operators is this: on a compliant vehicle, these systems are not accessories. They are part of what the vehicle was certified to do. A repair that leaves them out of specification has changed the safety performance of the asset, whether or not anything looks different.
Calibration is required any time a sensor’s position, angle or reference geometry could have moved. That covers far more repairs than most operators expect.
Any impact to the front of the vehicle is a trigger, including low-speed knocks. The forward radar sits in or behind the bumper, so a loading dock nudge or a car park contact can shift its aim without leaving visible damage. Bumper and grille removal alone is enough, even for cosmetic work, because the sensor’s position relative to the reinstalled fascia can change. This is the trigger workshops miss most often. Following truck smash repairs, sensor verification should be part of closing the job out.
The forward camera is mounted to the glass. Replacing the windscreen disturbs its reference entirely, and reusing the original camera does not avoid the requirement. Even a slight variation in the tilt or centring of the new glass changes what the camera believes it is seeing.
This is where heavy vehicles differ sharply from passenger cars. Ride height determines the angle at which every forward sensor views the road. Air suspension repairs, spring replacement, or any correction that changes how the vehicle sits will alter that angle. Structural work is more significant again: chassis straightening and realignment restores rail geometry and datum points, and once those have moved and been corrected, the sensors are referencing a vehicle that is no longer shaped the way they were originally set up for.

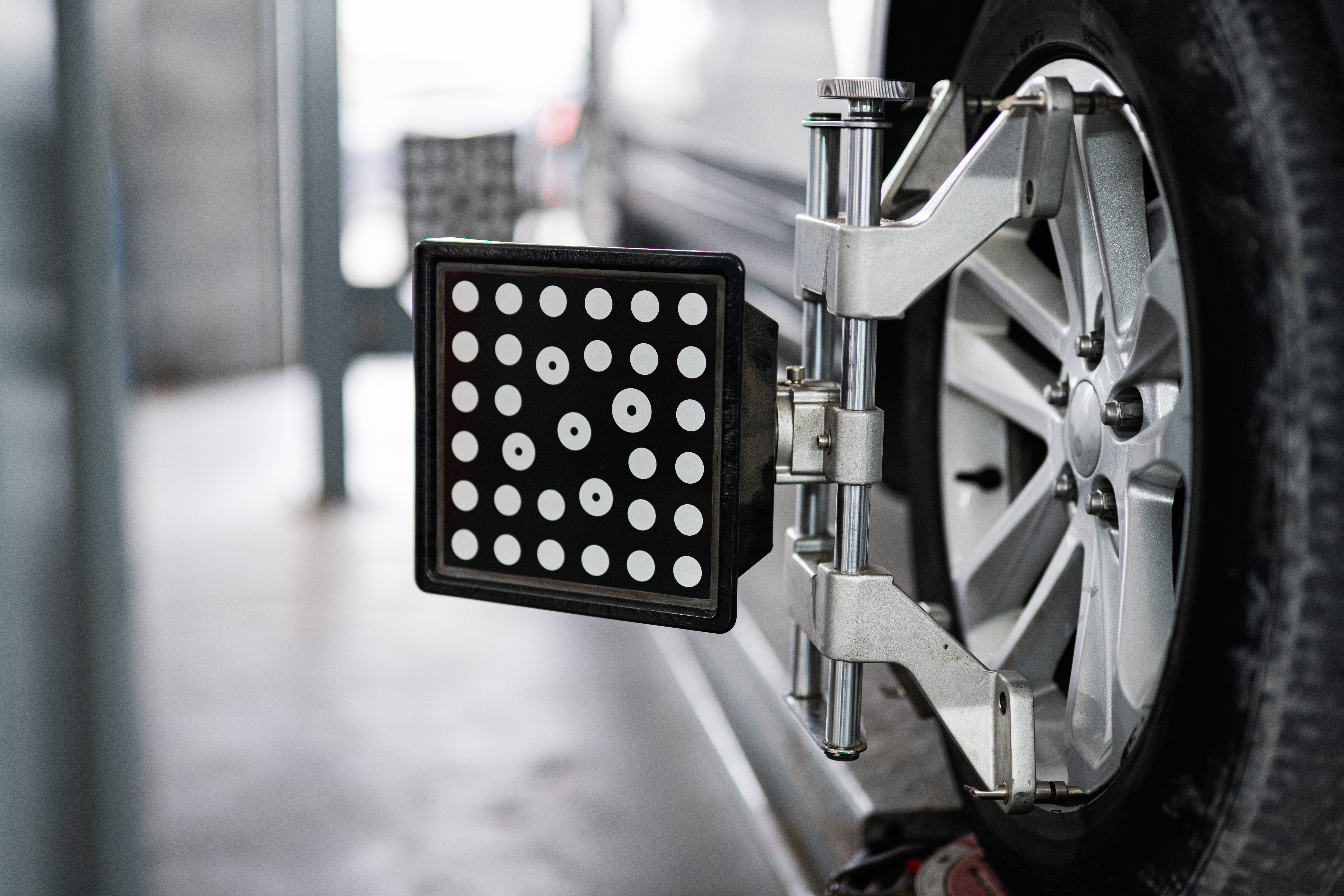

Forward-facing sensors are calibrated against the thrust line, meaning the direction the rear axles actually push the vehicle, not simply where the front wheels are pointed. Correcting alignment changes the thrust angle and resets the steering angle sensor’s understanding of centre. Calibrating before the alignment is confirmed simply locks the existing error into the safety system.
Replacing a radar unit, camera or mounting bracket always requires calibration. So does module replacement or reprogramming, since stored calibration values do not survive the change. Heavy vehicle platforms including Bendix and Detroit specify radar alignment whenever the unit has been removed, regardless of the reason.
There are two methods, and the correct one is determined by the manufacturer rather than the workshop.
Static calibration happens indoors on a level floor, with physical targets and radar reflectors positioned at measured distances and heights, centred on the vehicle’s thrust line. Dynamic calibration requires driving the vehicle at a defined speed on a road with clear lane markings while the system self-aligns. Many vehicles require both, in a specified order.
Australian conditions complicate the dynamic side more than the marketing material usually admits. Faded lane markings on regional routes, harsh glare and extended roadworks can all stall a dynamic calibration part way through, which is worth factoring into turnaround expectations. Stable battery voltage matters too, since these routines run modules for extended periods and a voltage sag mid-procedure produces an incomplete result.
Because a misaligned system produces no symptoms in normal driving, the only meaningful verification is a documented calibration and a clean post-repair scan. Full heavy vehicle diagnostics should bookend the work: a pre-scan capturing fault codes and live parameters before the repair starts, and a post-scan confirming no residual or pending faults afterwards.
There is a compliance dimension as well. Under the Heavy Vehicle National Law, the Chain of Responsibility places a primary duty on parties to ensure the safety of their transport activities so far as is reasonably practicable. The National Heavy Vehicle Regulator is explicit that the vehicle owner holds the greatest influence over maintenance and continued roadworthiness. A truck returned to service with safety systems that were disturbed and never re-verified is difficult to defend against that standard, and increasingly the industry treats an uncalibrated system as an incomplete repair rather than a missing optional extra.
Keep the calibration records. Before and after scan reports, target setup data and verification results are what demonstrate the vehicle left the workshop in specification, and they are what insurers and regulators will ask for.
If the vehicle has a windscreen-mounted forward camera, yes. Manufacturers generally mandate recalibration after any windscreen replacement regardless of whether the camera itself appeared to move. Older vehicles without camera-based systems are unaffected.
No. Clearing a code removes the warning without correcting the underlying aim of the sensor, which leaves a safety system that reports itself as healthy while performing out of specification. Codes should never be cleared without diagnosis and correction.
A straightforward static calibration typically runs from around 30 minutes to a couple of hours once the vehicle is prepared and staged. Jobs requiring both static and dynamic procedures, or those following structural repair, take longer because alignment and ride height must be confirmed correct first.
On many platforms, yes. Alignment work changes the thrust angle and the steering angle sensor’s zero point, both of which forward-facing sensors reference. The sequence matters: alignment is confirmed first, then calibration is performed against the corrected geometry.
Calibration is generally treated as a legitimate part of returning a vehicle to pre-accident condition when it is required by the manufacturer’s repair procedure. Supplying the OEM requirement and the scan documentation with the estimate makes authorisation considerably smoother.
ADAS calibration is no longer a niche concern for late-model prestige vehicles. It now applies across the national heavy vehicle fleet, and it sits at the intersection of structural repair, alignment and electronics, which is exactly where partial fixes tend to hide. Repairing the panel without re-verifying the sensor behind it leaves the asset looking finished while performing differently to how it was certified.
Wales Heavy Vehicle Repairs works to OEM methods across trucks, trailers, buses and coaches, with laser and optical chassis measurement, documented pre-scan and post-scan diagnostics, and second-person quality assurance on every job. If you are planning repair work on a vehicle fitted with AEB or lane departure systems, talk to us early so the calibration requirements are scoped into the estimate rather than discovered at handover.
